#3 Type XState with the Typegen

Hey there!

Typegen is the official and recommended way to type your machines. It works either with Stately’s VS Code extension or with XState’s CLI.

Typegen is an opt-in that needs to be allowed on each machine.

ts
// appMachine.ts
import { createMachine } from "xstate";
const appMachine = createMachine({
  tsTypes: {},
});

Once activated by creating a tsTypes property in the machine definition and saving the file, a tool will generate an appMachine.typegen.ts file, which will automatically be referenced in the file where the machine is defined to import the generated types.

ts
// appMachine.ts
import { createMachine } from "xstate";
const appMachine = createMachine({
  tsTypes: {} as import('./appMachine.typegen.ts').Typegen0,
});

permalink#The Typegen output

Say we have a small state machine that waits for the SUBMIT event to submit data to the server and then returns to the idle state.

ts
// appMachine.ts
const appMachine = createMachine({
  tsTypes: {} as import("./appMachine.typegen").Typegen0,
  states: {
    idle: {
      on: {
        SUBMIT: "submitting",
      },
    },
    submitting: {
      invoke: {
        src: "submitDataToServer",
        onDone: {
          target: "idle",
        },
      },
    },
  },
});

The Typegen will generate a file with important information that can’t be inferred otherwise.

ts
// appMachine.typegen.ts
export interface Typegen0 {
  "@@xstate/typegen": true;
  internalEvents: {
    "done.invoke.(machine).submitting:invocation[0]": {
      type: "done.invoke.(machine).submitting:invocation[0]";
      data: unknown;
      __tip: "See the XState TS docs to learn how to strongly type this.";
    };
    "xstate.init": { type: "xstate.init" };
  };
  invokeSrcNameMap: {
    submitDataToServer: "done.invoke.(machine).submitting:invocation[0]";
  };
  missingImplementations: {
    actions: "assignServerResponseToContext";
    delays: never;
    guards: never;
    services: "submitDataToServer";
  };
  eventsCausingActions: {
    assignServerResponseToContext: "done.invoke.(machine).submitting:invocation[0]";
  };
  eventsCausingDelays: {};
  eventsCausingGuards: {};
  eventsCausingServices: {
    submitDataToServer: "SUBMIT";
  };
  matchesStates: "idle" | "submitting";
  tags: never;
}

A few things can be said about the content of this file.

permalink#matchesStates

matchesStates is a type union of all states in the machine. It’s used to strongly type the parameter taken by state.matches(). If the state machine had compound states — that is, states with child states — it would generate string paths for them, too: submitting.firstStep.

permalink#eventsCausingActions, eventsCausingDelays, eventsCausingGuards, and eventsCausingServices

eventsCausingActions, eventsCausingDelays, eventsCausingGuards, and eventsCausingServices are objects describing which events trigger actions, delays, guards, and services defined as strings in the machine. This allows XState to type the event parameter they receive correctly. For this machine, it means that if the SUBMIT event had a payload, the submitDataToServer service would be able to access it:

ts
// appMachine.ts
const appMachine = createMachine({
  schema: {
    events: {} as {
      type: "SUBMIT";
      data: string;
    }
  }
}, {
  services: {
    submitDataToServer: (context, event) => {
      // This is strongly typed 👇
      event.type === "SUBMIT";
      // This is too 👇
      typeof event.data === "string";
    },
  },
});

permalink#invokeSrcNameMap

invokeSrcNameMap is also a map of services, but the attached type union is the identifier of the transitions the service can lead to, especially when a promise service terminates.

permalink#internalEvents

internalEvents holds the internal events triggered automatically by XState. When a promise service terminates or throws, internal events will be triggered by XState. Delayed transitions also trigger internal events to notify the state machine when a timer ends. These events will be listed in internalEvents.

As stated by the comment in the __tip property, the output of promise services can be explicitly typed in machines to make these internal events more powerful:

ts
// appMachine.ts
const appMachine = createMachine({
  tsTypes: {} as import("./appMachine.typegen").Typegen0,
  schema: {
    services: {} as {
      submitDataToServer: {
        data: { status: number };
      };
    },
  },
  // ...
});

permalink#missingImplementations

Finally, the Typegen generates a type for all the named actions, delays, guards, and services referenced but not implemented: missingImplementations.

To reference them, we can pass an option object as the second parameter of the createMachine function:

ts
// appMachine.ts
const appMachine = createMachine(
  {
    tsTypes: {} as import("./appMachine.typegen").Typegen0,
    // ...
  },
  {
    actions: {
      assignServerResponseToContext: assign({}),
    },
    services: {
      submitDataToServer: async () => {},
    },
  }
);

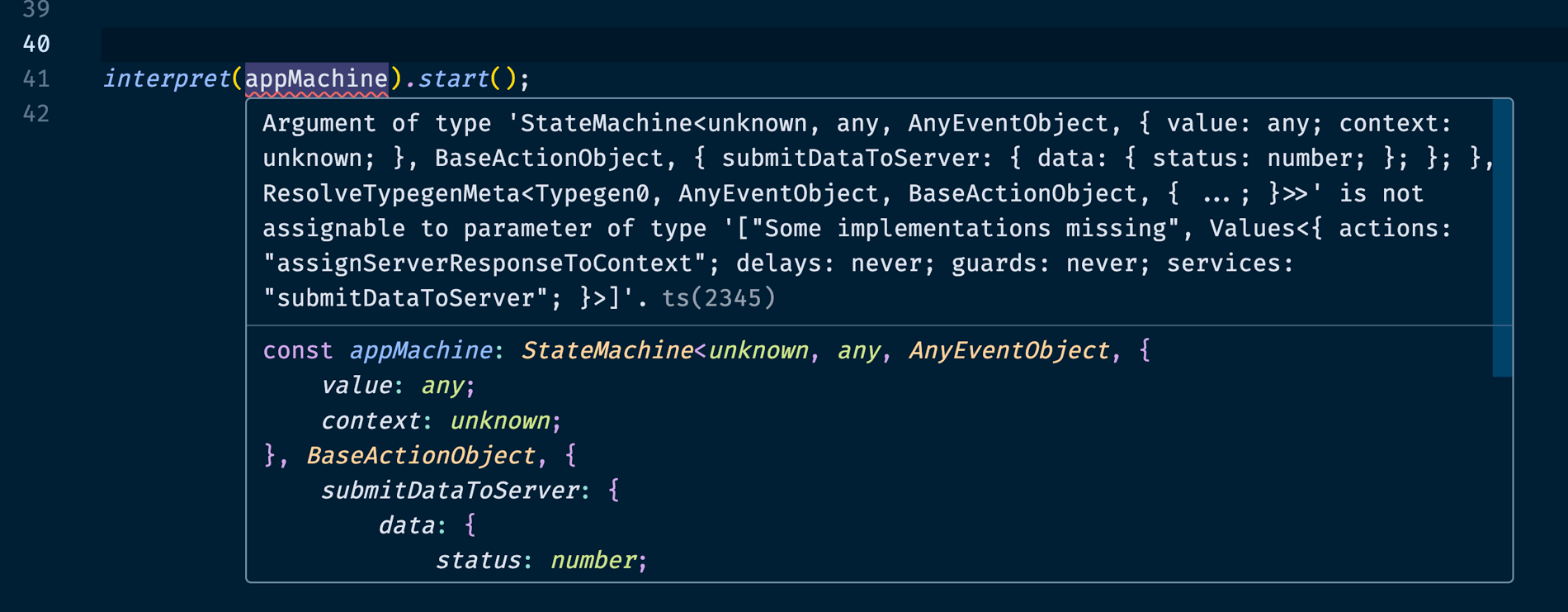

If you don’t configure the named actions, delays, guards, and services in your machine, XState will force you to by erroring when using the machine at the end, either with the interpret function or from the useMachine hook for React library.

You will have to provide the definitions before being able to use the machine. You can use the .withConfig() function to augment the configuration of the state machine and provide the missing definitions:

ts
import { interpret } from "xstate";
interpret(
  appMachine.withConfig({
    actions: {
      assignServerResponseToContext: assign({}),
    },
    services: {
      submitDataToServer: async () => {},
    },
  })
).start();

permalink#Favor naming instead of inlining code

For the Typegen to work, you must name your actions, delays, guards, and services instead of writing their implementation inline:

ts
// appMachine.ts
const appMachine = createMachine({
  states: {
    submitting: {
      invoke: {
        // Does not work well with the Typegen ❌
        src: async (context, event) => { /** */ },
        // Perfect! ✅
        src: "submitDataToServer",
      },
    },
  },
});

It also makes working with Stately Studio easier, so go for it!

permalink#Hide generated files from the File Tree in VS Code

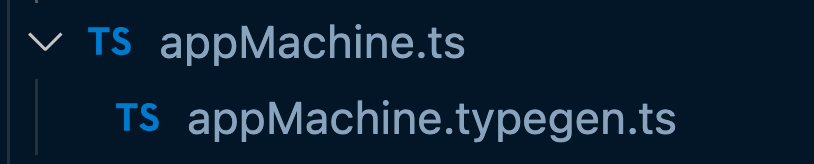

After installing Stately’s VS Code extension, you will be asked whether you want to hide generated files from the File Tree View in VS Code. It will hide the file by default and allow you to unfold the source file as a directory.

These autogenerated files should not be committed to your Git repository. Instead, you should gitignore them and generate them when needed. During development, let the VS Code extension generate Typegen files for you. Use XState’s CLI to generate them for production builds.

permalink#Wrap up

XState support of TypeScript has gotten so much better with the Typegen. It’s a tool you should use!

I hope you were able to find my explanation useful to you.

In the next post, you will learn how to invoke and spawn actors!

Best,
Baptiste
